ZSOM Power Supply

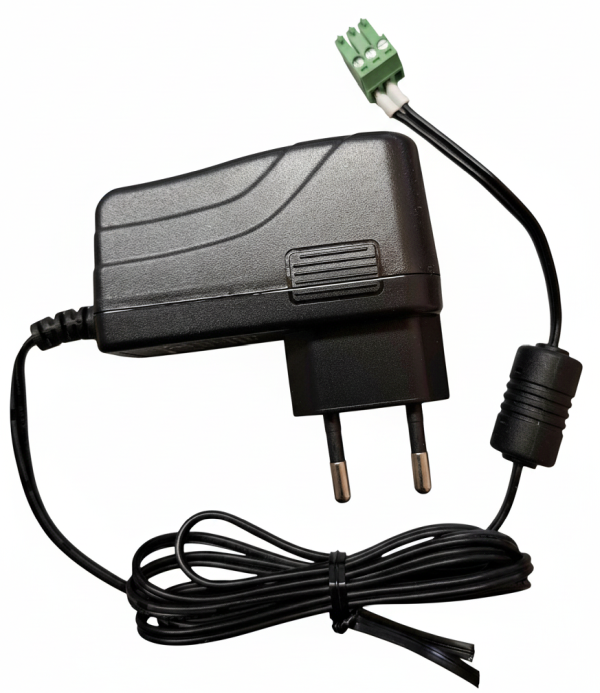

The ZSOM Power Supply is a 12 V plug-in power supply with a pluggable screw terminal connector that fits directly into the power connector of ZSOM-Control and ZSOM-Mini-Standard. It is part of the ZSOM-Control Starter Kit and can also be ordered separately.
Specifications
| Parameter | Value |
|---|---|
| Input voltage | 100–240 V AC, 50/60 Hz |
| Mains plug | Type C (Europlug) |
| Output voltage | 12 V DC |
| Output current | max. 1.5 A |
| Output power | max. 18 W |
| Cable length | approx. 1.2 m |
| Connector | 3-pin pluggable terminal block, 3.50 mm pitch, female, with screw terminals (Würth WR-TBL 691361100003) |
| Wire cross section (connector) | 0.13–1.31 mm² (AWG 26–16) |
| Rated current (connector) | 10 A |
Connector pin assignment
The plug matches the power connector J3 on the ZSOM-Control (see pinout) and the power input of the ZSOM-Mini.
| Pin | Signal |
|---|---|
| 1 | GND |
| 2 | +12 V |
| 3 | not connected |
Usage notes
- The 12 V output is well within the input range of both boards (9–28 V).
- 18 W covers the typical power consumption of the ZSOM-Control with display (about 8.5 W), which leaves headroom for the switchable 5 V / 3.3 V outputs and peripherals such as USB devices or a 4G modem.
- If the application draws more power, or a different supply voltage is required, any DC supply within 9–28 V that delivers at least 1 A can be used. The mating connector can be ordered separately as A013719.
- Only plug in or unplug the power supply connector when the mains side is disconnected.
Ordering Code
This is a list of accessories and plug-ins that can be combined with carrier boards and add-ons
| Article Number | Name | Version | Notes | Product Status |
|---|
| A027237 | ZSOM-Wi-Fi-TPE-N150USB | USB Wi-Fi Dongle | available | |
| A020667 | ZSOM-Power-Supply | V1.0 | 12V Power supply | available |
| A012118 | ZSOM-4G-GPS-ME909u-521 | 4G cell phone modem with GNSS functionality | in development | |
| TBD | ZSOM-GPS-RTK-ZED-F9P | V1.1 | GPS RTK module | in development |
| A021892 | ZSOM-GPS-RTK-ZED-F9R | V1.1 | GPS RTK module with dead reckoning | in development |
