Backup battery

The backup battery is the power source for the sbRIO-9651’s internal RTC and the precise RTC (ZSOM-Mini) when no other power is applied to the target.

The Backup battery is directly connected to the backup voltage input of the sbRIO9651

The Backup battery is optionally available as solderable add-on PCB

By default only the precise RTC is powered by the backup battery.

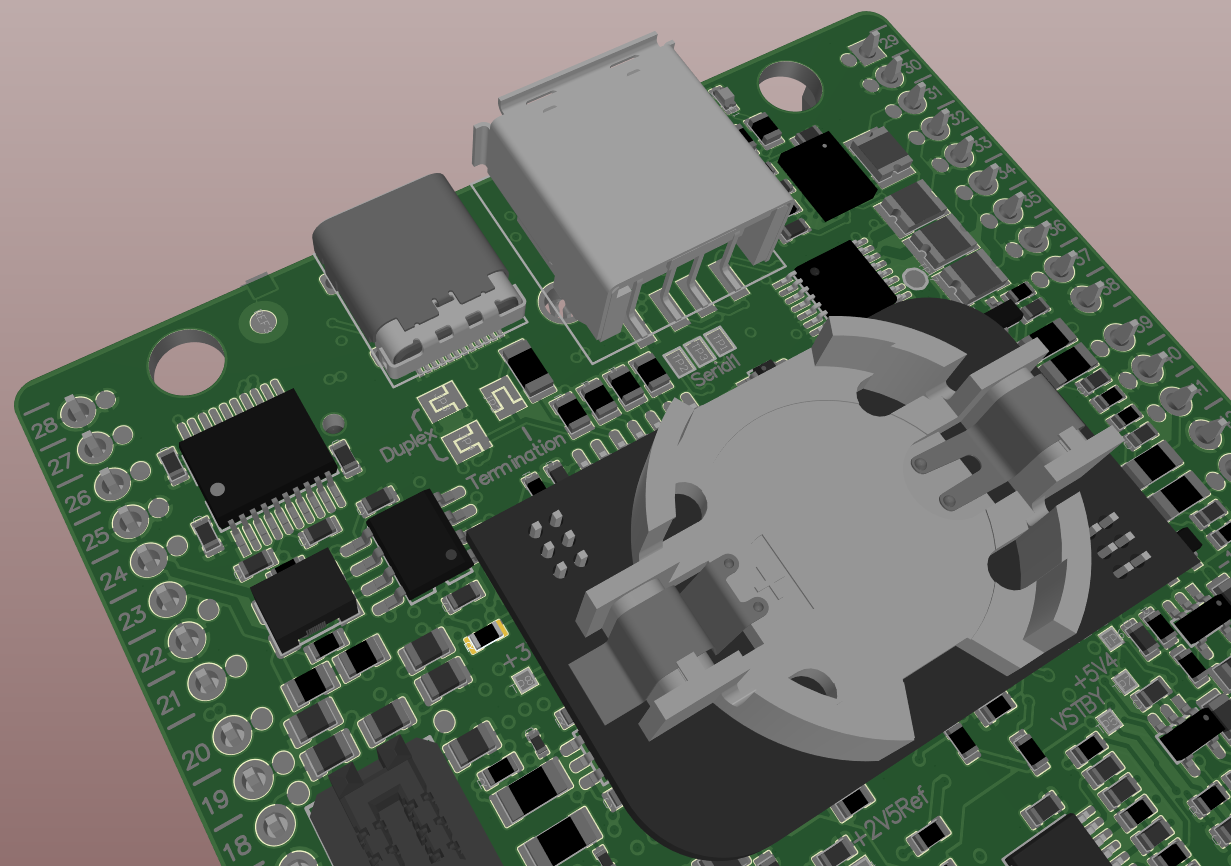

To power the sbRIO-9651’s internal RTC the zero ohm resistor highlighted in the picture below must be mounted:
