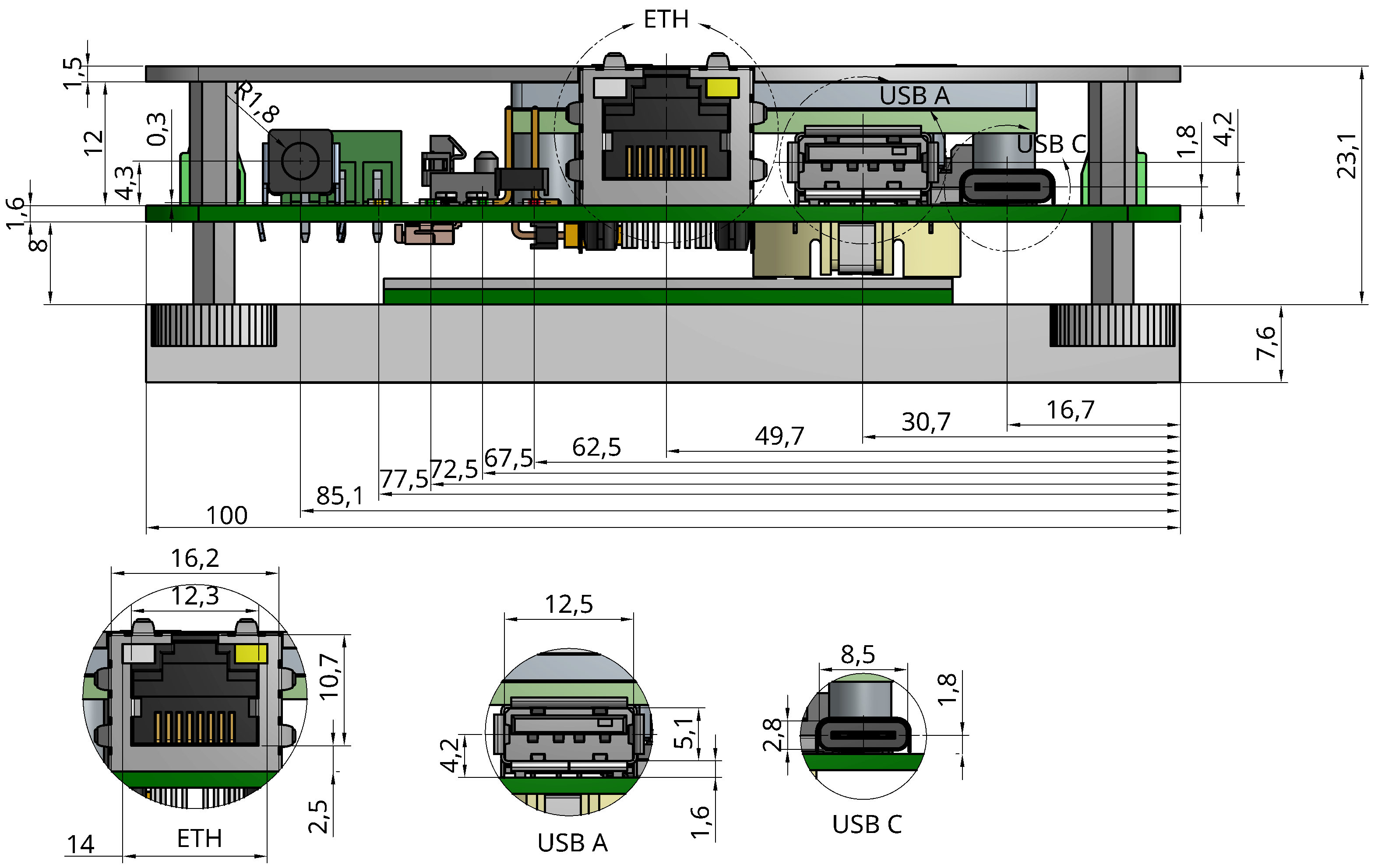

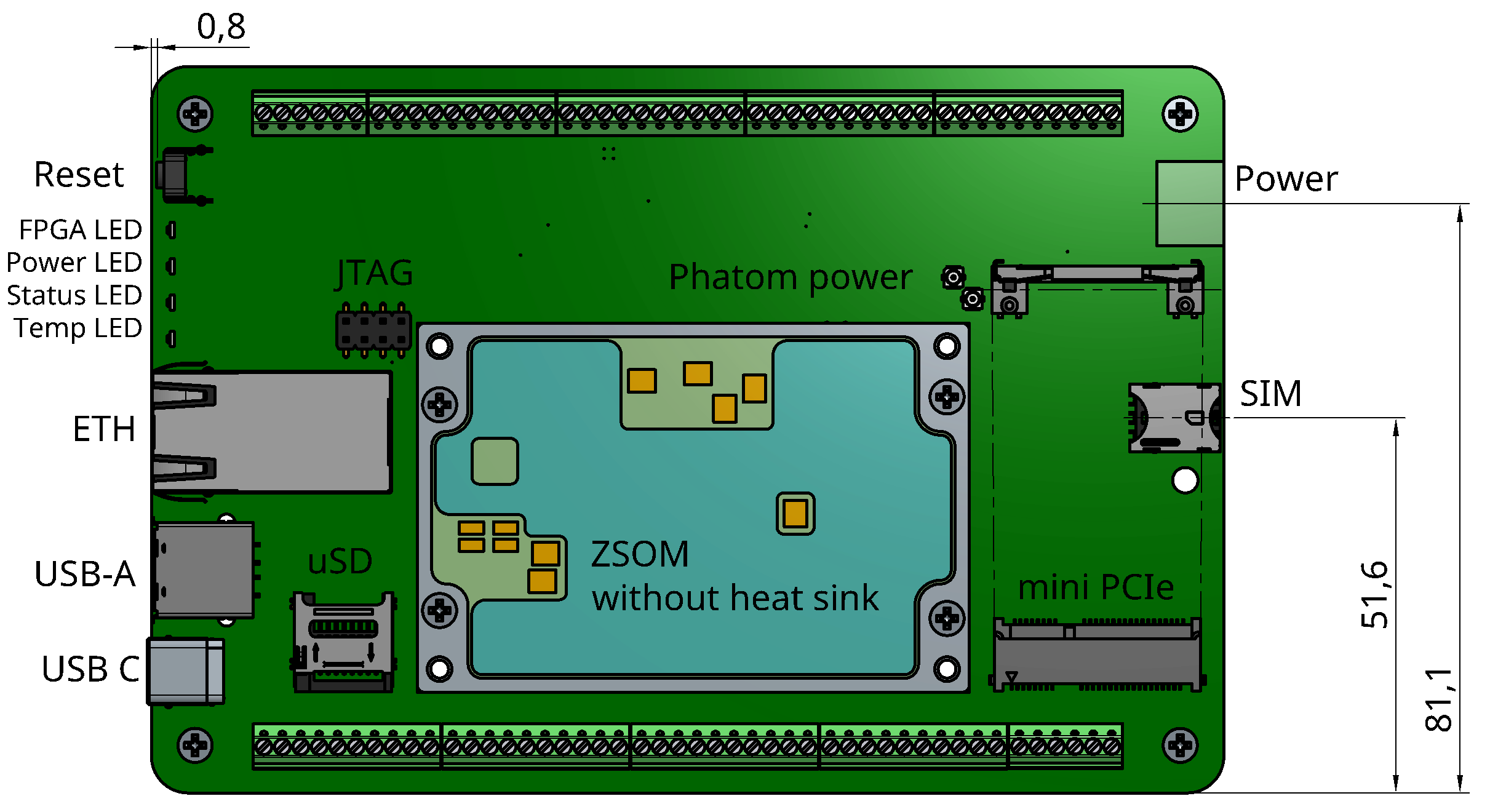

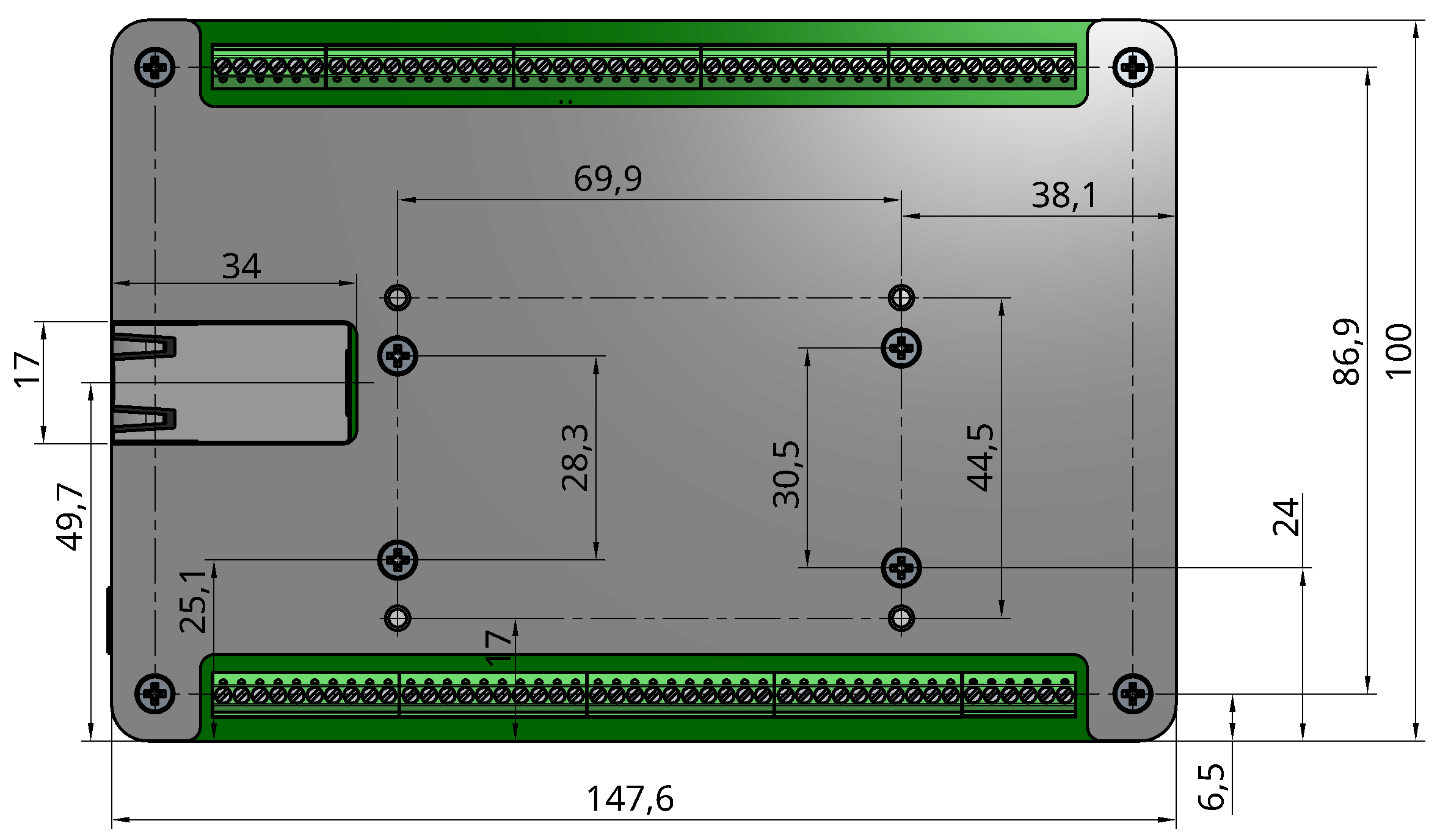

Share via Share via... Twitter LinkedIn Facebook Pinterest Telegram WhatsApp Yammer Reddit TeamsRecent ChangesSend via e-MailPrintPermalink × Table of Contents Mechanical drawings Heat spreader (top view) Interfaces (side view) PCB (top view) PCB (bottom view) Step model Mechanical drawings ZSOM-Control V2.1 Heat spreader (top view) All screws have an M2.5 thread. zsom-control_v1_2_heat_spreader.pdf Interfaces (side view) This drawing contains (top to bottom) Heat spreader, ZSOM-Control, Display zsom-control_v1_2_interfaces.pdf PCB (top view) zsom-control_v1_2_pcb_top.pdf PCB (bottom view) zsom-control_v1_2_pcb_bottom.pdf Step model zsom-control_v1.2.step.zip Last modified: 7 weeks ago
